    What is SD-WAN Architecture?

    Section I: Understanding SD-WAN and its Architecture


    SD-WAN (Software-Defined Wide Area Networking) is a modern networking solution that optimises connectivity across broadband, DIA, and LTE, making it ideal for cloud, SaaS, and remote work environments. Unlike traditional WANs, it uses software to centrally manage and enhance network performance.



    What is SD-WAN Architecture?

    SD-WAN (Software-Defined Wide Area Network) architecture is the framework; both logical and physical that enables secure, intelligent, and optimised connectivity between enterprise sites, data centres, and cloud environments. It is designed to meet the performance demands of modern applications, SaaS platforms, and distributed workforces.

    Supporting content

    Modernise your WAN without the complexity.

    Explore Orixcom Managed SD-WAN

    Importance of SD-WAN architecture

    • Overlay Network Design: SD-WAN architecture creates a virtual overlay on top of existing underlay networks such as broadband, MPLS, and LTE. This allows traffic to be routed intelligently and securely without replacing the underlying infrastructure.

    • Control–Data Plane Separation: The architecture separates the control plane, which centrally manages routing and policies, from the data plane, which forwards actual traffic. This improves efficiency and simplifies management.

    • Transport Flexibility: SD-WAN architecture enables it to support multiple transport options; MPLS, broadband, and LTE/5G allowing enterprises to balance performance, cost, and redundancy.

    • Application-Centric Routing: By identifying applications in real time, SD-WAN architecture intelligently routes traffic based on business priorities and network performance.

    Section II

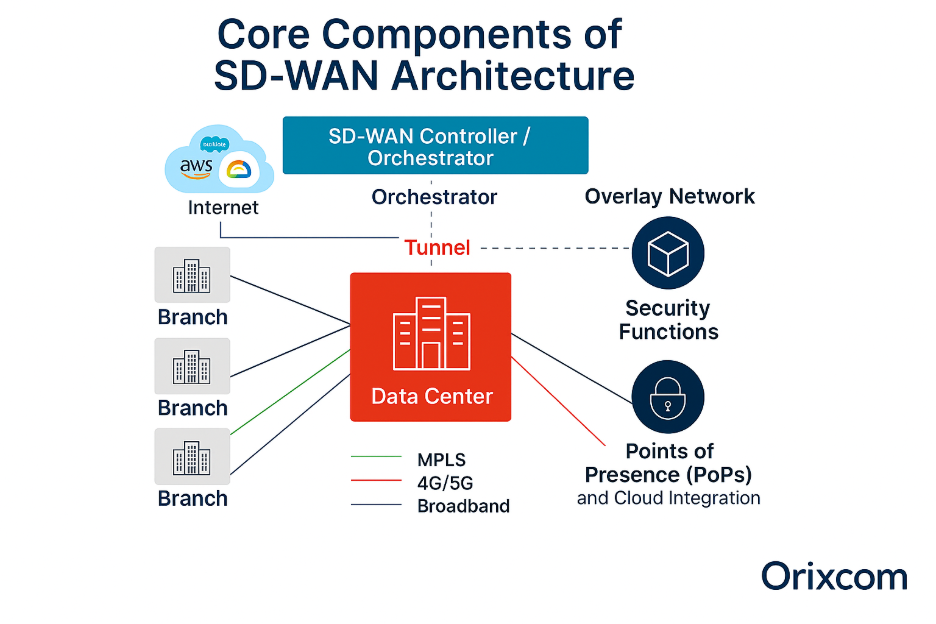

    Core Components of SD-WAN Architecture

    SD-WAN architecture is built from several interconnected components that work together to provide intelligent, secure, and resilient WAN connectivity. Each plays a specific role in ensuring application performance, operational simplicity, and network security.

    • Edge Devices (Physical and Virtual)
      These devices are deployed at branch offices, data centres, or in cloud environments. They connect to multiple transport links and enforce centralised traffic policies. Physical appliances handle on-premises connectivity, while virtual versions integrate directly into cloud platforms.

    • SD-WAN Controller / Orchestrator
      Functioning as the control plane, the controller makes routing decisions and synchronises policies across all connected sites. It enables zero-touch provisioning, allowing new locations to be brought online without manual configuration, and provides centralised management through a single interface.

    • Overlay Network
      An encrypted, virtual network layer that runs over the existing physical infrastructure. These tunnels abstract the complexity of the underlying topology, enabling flexible and secure traffic forwarding regardless of the transport medium.

    • Security Functions
      Built-in features such as encryption, segmentation, firewalls, and in some cases, next-generation firewall (NGFW) or intrusion prevention systems (IPS). Modern SD-WAN solutions often integrate with Secure Access Service Edge (SASE) and Zero Trust Network Access (ZTNA) frameworks for enhanced protection.

    • Transport Media (Underlay)
      The physical network layer over which the SD-WAN operates. This can include broadband, dedicated internet access (DIA), MPLS, and LTE/5G links. Multiple options enable cost efficiency, redundancy, and performance optimisation.

    • Points of Presence (PoPs) & Cloud Integration
      Cloud-based SD-WAN services may use globally distributed PoPs to provide optimised routing, reduced latency, and improved connectivity between sites and cloud applications.

    Together, these components form a cohesive system that delivers scalable, secure, and application-aware WAN services, tailored for the demands of modern, distributed enterprises.

    Supporting content


    Section III

    Types of SD-WAN Architecture

    SD-WAN can be implemented in several architectural forms, each designed to meet specific performance, scalability, and cloud adoption needs. Choosing the right type depends on an organisation’s network design, application requirements, and long-term growth strategy.

    • On-Premises SD-WAN Architecture
      In this model, SD-WAN edge appliances are deployed directly at branch offices and data centres. Traffic management and routing decisions are handled locally, making it well-suited for organisations that prefer greater on-site control and performance consistency.

    • Cloud-Enabled SD-WAN Architecture
      This approach integrates SD-WAN with public and private cloud platforms such as AWS, Azure, or Google Cloud. By routing traffic directly into the cloud, it enhances SaaS and IaaS performance and reduces latency, which is ideal for cloud-first enterprises.

    • Hybrid SD-WAN Architecture
      A hybrid model combines MPLS with broadband, LTE, or DIA links, enabling enterprises to balance cost and performance. Critical applications can be sent over MPLS for guaranteed reliability, while less sensitive traffic uses internet-based connections.

    • Secure SD-WAN Architecture
      Here, networking and security functions converge into a unified solution. Built-in features such as firewalls, SASE integration, and Zero Trust Network Access (ZTNA) ensure that traffic is optimised while remaining protected against evolving cyber threats.

    Supporting content


    Section IV

    Benefits of a Robust SD-WAN Architecture

    A well-designed SD-WAN architecture delivers the flexibility, performance, and security that modern enterprises needed to support distributed operations and cloud-first strategies. Key advantages of a robust SD-WAN architecture include:

    • Agility and Scalability
      SD-WAN streamlines network expansion through zero-touch provisioning and centralised policy control. New sites can be brought online in hours rather than weeks, making it ideal for businesses with rapidly changing branch or remote workforce needs.

    • Cost Efficiency
      By reducing dependency on costly MPLS circuits and using more affordable options like broadband, DIA, and LTE/5G, SD-WAN helps lower operational expenses. Intelligent traffic steering ensures critical workloads still receive premium performance without overspending.

    • Better Application Performance
      SD-WAN recognises applications and applies intelligent routing to deliver them via the optimal path. Direct cloud access shortens data travel distance, improving speed and reliability for SaaS, VoIP, and real-time collaboration tools.

    • Enhanced Security
      Built-in encryption, network segmentation, and policy-based controls protect traffic from interception or unauthorised access. Advanced solutions integrate with frameworks like SASE or ZTNA for unified security across users, sites, and cloud resources.

    • Improved Reliability
      SD-WAN supports active use of multiple transport links, enabling instant failover when one path experiences latency, jitter, or packet loss. This ensures continuous connectivity for mission-critical services.

    SD-WAN in SASE and Contemporary Architectures

    SD-WAN plays a central role in Secure Access Service Edge (SASE) frameworks as well, where networking and security functions are delivered through a cloud-native architecture. By integrating with SASE, SD-WAN extends its reach from performance optimisation to full-spectrum security at scale.

    • Integrated Security at the Edge
      Instead of routing all traffic back to a central data centre for inspection, SASE applies security enforcement at SD-WAN edges. This approach reduces latency, improves user experience, and ensures consistent protection whether users are in branches, remote locations, or cloud environments.

    • Zero Trust Network Access (ZTNA)
      ZTNA within a SASE framework enforces access controls based on user identity, device posture, and session context. By integrating this into SD-WAN, enterprises limit lateral movement of threats and ensure that only verified entities can access network resources.

    A robust SD-WAN architecture balances cost savings with enterprise-grade network performance and security delivering a future-ready WAN that adapts to evolving business and technology demands.

    To understand how SD-WAN fits into modern security frameworks, explore our blog on SD-WAN, SASE and Zero Trust and see how these technologies work together to secure and optimise your network.

    Read the blog here

    Section V

    Challenges and Considerations in SD-WAN Architecture

    • Vendor Interoperability
      In environments using equipment from multiple vendors, achieving seamless component compatibility can be difficult. Differences in feature sets, policy formats, and management tools may require additional integration effort.

    • Operational Complexity
      Deployments spanning multiple regions or large-scale branch networks demand detailed planning, skilled teams, and strong governance. Without proper oversight, misconfiguration or inconsistent policies can undermine performance and security.

    • Security Gaps Without Integration
      While SD-WAN offers basic encryption and segmentation, it may lack advanced threat prevention. For full protection, integration with frameworks like SASE or ZTNA is necessary—adding layers such as secure web gateways (SWG) and cloud access security brokers (CASB).

    • Observability Needs
      Monitoring SD-WAN overlays and underlay link health is vital for performance assurance. This often requires advanced analytics or third-party monitoring tools to provide proactive insight into latency, jitter, and packet loss.

    Section VI

    Unlocking True Potential with Orixcom Fully Managed SD-WAN

    Addressing the complexity, security gaps, and visibility challenges often found in SD-WAN deployments requires more than just technology; it needs the right expertise and operational approach.  Orixcom Fully Managed SD-WAN Solution provides that balance, delivering high-performance, secure, and scalable connectivity while removing the burden of day-to-day management.

    The service combines the intelligence of SD-WAN architecture with Orixcom’s regional expertise and end-to-end management, ensuring enterprises can adopt modern WAN capabilities without navigating integration and operational hurdles themselves.

    Key Features of Orixcom Managed Cisco SD-WAN:

    • Centralised Control and Visibility:
      Single-pane management of all sites via Cisco vManage, enabling unified policy control and monitoring.
    • Application-Aware Routing:
      Dynamic traffic prioritisation for business-critical applications.
    • Secure Internet Breakout:
      Direct, secure access to SaaS and cloud workloads without backhaul latency.
    • Hybrid Transport Support:
      Seamless use of DIA, broadband, LTE, and MPLS for flexibility and resilience.
    • Zero-Touch Provisioning:
      Rapid deployment for new sites with minimal manual intervention.
    • ZTNA and SASE-Ready:
      Integrated support for modern security and access models.

    By combining intelligent routing, integrated security, and hybrid connectivity, Orixcom managed solution delivers the performance, reliability, and agility that a well-designed SD-WAN architecture promises without the complexity of running it in-house.
